EasyN wireless outdoor waterproof 1080P 20m night vision NVR/TF card recording

  • 12 - 99 Pieces
    $45.00
  • 100 - 999 Pieces
    $35.00
  • >=1000 Pieces
    $29.00
Type:
IP Camera
Style:
PTZ Camera
Resolution:
1920 x 1080
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
EasyN
Model Number:
158W
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Product name:
Security Camera
Resolution:
1920*1080P
Lens:
3.6mm
Keyword:
Ip Camera Module Wifi
Feature:
Onvif
Warranty:
12 Months
IR Distance:
20m
Pixel:
2 MP
Storage:
Max 128GB TF/SD Card
ONVIF:
Support Onvif 2.3
Packaging & Delivery
Packaging Details
Product: 72*180mm (dia.*L)
Color box:235*130*120mm (L*W*H)
Carton:50*42*27cm(L*W*H)
12pcs/carton
Net weight: 370g
Cross Weight: 580g (including color box and accessories)
Carton : 8kg/carton
Port
SHENZHEN



EasyN wireless outdoor waterproof 1080P 20m night vision NVR/TF card recording



Model:A158W3N0*
SystemWEBDefault account and password : admin
P2PFree, Plug and Play, no port forwarding
APPAndroid:search EasyN P in Google play or visit p.easyn.cn / p.easyn.com for APP download
iOS:search EasyN P in Appstore for APP download.
PC Client
CMS
1,4,9,16,25,36 multi windows in center management system,recording and alarm
System and browserMicrosoft Win98 SE/ME/2000/XP,Vista,Win 7,
Internet Explorer 6.0/7.0/8.0/9.0/10, FireFox,Google , Safari
Main chipsetoperation systemLinux
DSPHisilicon 32Bit RSIC Embedded Processor
Sensor1/2.7" CMOS
Memory128M
FLASH16M
VideoCompression formatH.264
Pixel2 Megapixel
Frame rate1~25fps
Resulotion(1920*1080),VGA(640*352),QVGA(320*176)
Image adjustmentThe hue, brightness, contrast, saturation and sharpness are adjustable
LUX0.4 Lux/F1.2
SNR>48DB
Shutter1/50s(1/60s) ~ 1/100,000 s
LensM12/3.6mm  F1.2 , angle of view 110 °(Diagonal)
3X digital zoom
WB&BLCAuto
Night visionIR3 lattice lamps, Wavelength 850nm ,IR angle 110 °
DistanceIR distance 15m, photoresistor sensitivity: 0~5 Lx
IR-CUTAuto switch , without color cast
NetworkWireRJ-45   10/100Mb
Online limitUp to 3 visitors oneline for the first stream,
Up to 3 visitors online for the second stream,
Total up to 6 visitors online.
Support IP addressStatic IP, Dynamic IP, PPPOE
ProtocalSupport TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP,PPPoE and so on
WirelessWIFIWIFI IEEE 802.11B/G/N
Antenna2.4GHz 3dBi antenna
Transmission rate150Mbps (Max)
ModeAP mode,QR code
RecordingTypeTF card , support 24 hours continuous recording.
Micro SD sizeSupport 2G/4G/8G/16G/32G/64G,  128G max.
FormatAVI
ProtocalCompatible with onvif 2.1

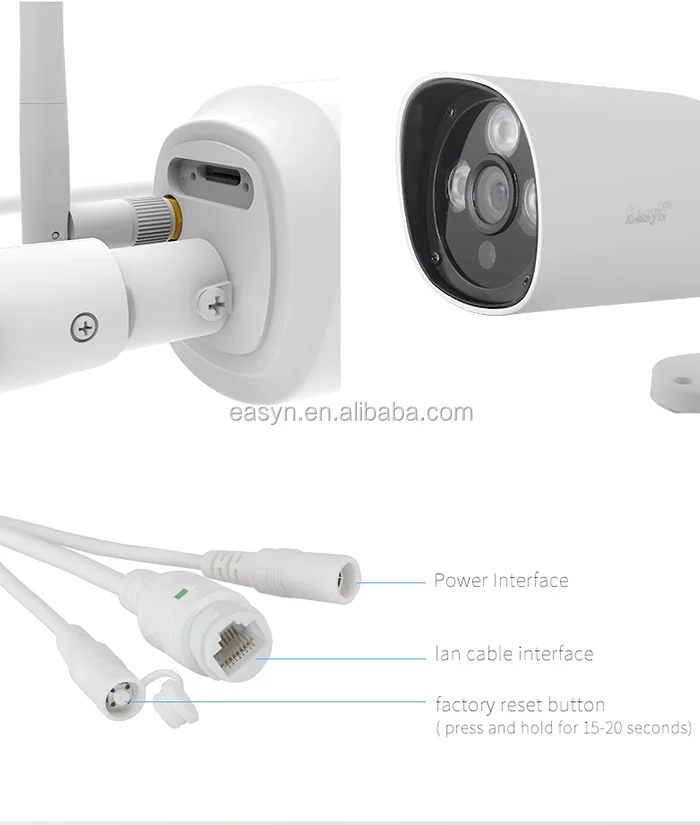

HousingMaterialMetal, including a micro SD card slot designed on outer case for user to assembly various size TF card himself.
Network lightYellow or green
PowerPowerDC12V 1A
Frequency50Hz / 60Hz
EnvironmentAssemblyOutdoor
Temperature-10~50 °C
Humidity10% - 90% RH
PackingBoxColor box and cartoon,12pcs/carton

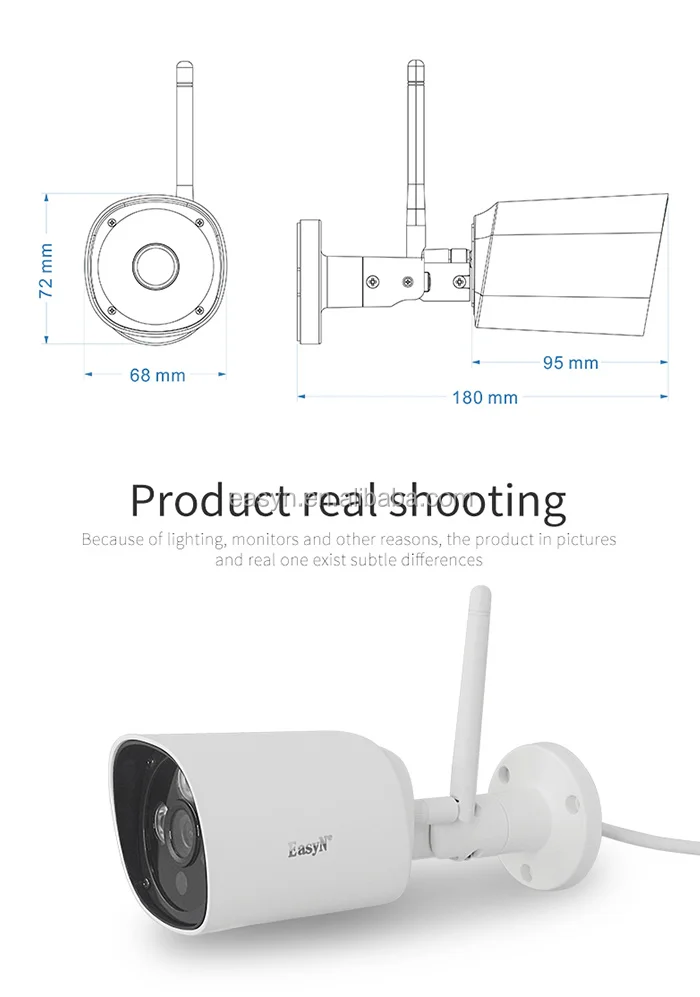

DimensionProduct: Φ72*180mm (dia.*L)
Color box:235*130*120mm (L*W*H)
Carton:500*420*270mm(L*W*H)
12pcs/carton
WeightNet weight: 370g
Cross Weight: 580g (including color box and accessories)
Carton : 8kg/carton

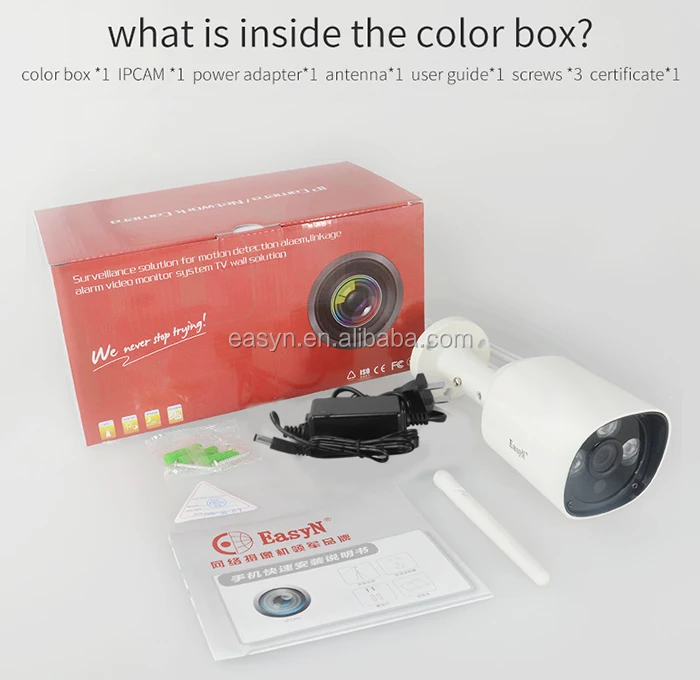

AccessoriesPower adapter, manual, screws, bracket, antenna
AlarmInput/outputnone
Motion detectionSupport 1 detection area for mobile and 4 areas for PC
Alarm notificationPush notification for iPhone/Android APP
Upload pictures to only one email address, three pictures to the max.
Upload snapshot and alarm records to TF card (when insert Micro TF card)and FTP server
CertificateCertificateISO FCC CE RoHS
